CyMill Milling Heads

Pioneering direct-driven 2-axis NC milling heads

CYTEC – MILLING HEADS

Decades of experience in developing milling heads with direct drive technology enable our customers to benefit from a major technological edge.

Our product range comprises precise and extremely reliable machine heads distinguished by high dynamic performance.

Our universal milling heads with direct drive technology excel with incredibly fast acceleration values and unprecedented precision. Positioning accuracy is around 0.0005°. CYTEC offers you a wide range of configuration options that can be individually tailored to your requirements. Compact and flexible milling heads mean greater utilisation of the available workspace. Combined with our innovative drive technology, you can fully exploit the potential of our swivel milling heads. Thanks to the integration of cutting-edge spindle technology by CYTEC, this results in a highly productive system. Here, our spindles can be used for both pure milling, as well as for rotational milling.

Our expertise – your advantage

Our passion for mechanical engineering spurs us on to keep pushing the cutting edge of the most innovative production technologies. For this reason, CYTEC continuously further develops its direct drives for rotating and swivel axes. The latest generation of state-of-the-art drive technology is a result of this mission and has once again been optimised for efficiency. With every development step, we always have our sights on the high requirements our customers have in terms of complex work processes and productivity increases. As a result of our holistic approach, we are able to offer bespoke solutions. CNC tool machines with CYTEC milling heads therefore always work according to the latest standards.

The art of machining

High acceleration and rapid motion, enabled by our direct drives, are combined with high precision. These attributes make

CYTEC machining heads unparalleled in precision machining, allowing even the most delicate component contours to be produced. Extremely fast, reliable and designed for a long life – our milling heads give you peace of mind. This is ensured, for instance, by optimal control characteristics and high overload capacity.

The high-performance drive clamp supports precise positioning – even during the heavy-duty machining of large workpieces. CYTEC milling heads are ideally suited to a wide range of application requirements.

THE PERFECT MILLING HEAD FOR EVERY APPLICATION

category

  • category
  • Fork milling head
  • Orthogonal milling head
  • Universal milling head (single axis)
  • Universal milling head (double axis)

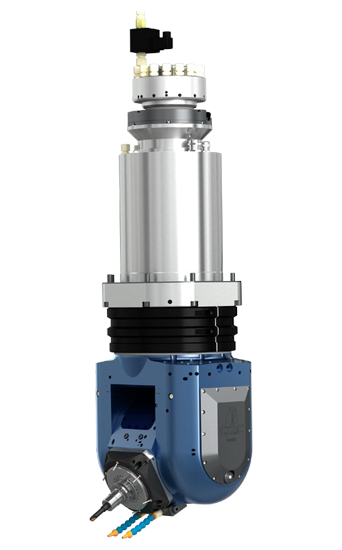

Fork milling head

NANO-SERIES

Our smallest model containing our ultra-compact direct drive technology.

To the milling head version

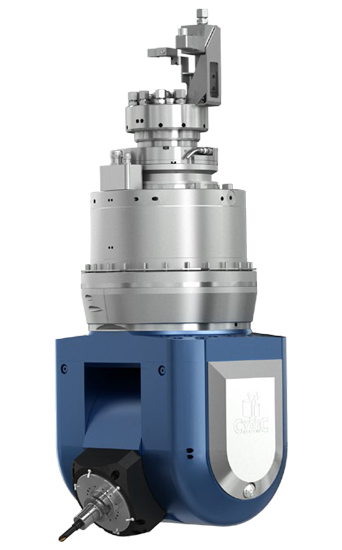

Fork milling head

S-SERIES

Slime-line as perfect entry-level choice in steel-milling.

To the milling head version

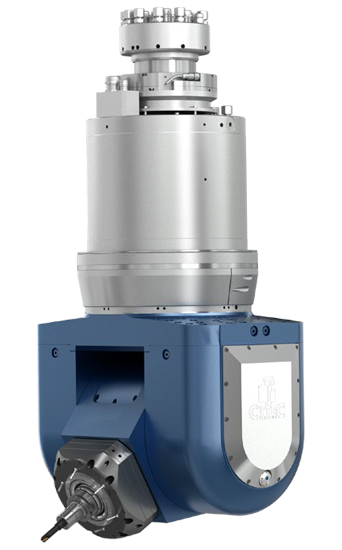

Fork milling head

S-SERIES HD

Compact, light, enormously strong. The ideal choice for the machining of structural components, that are difficult to access.

To the milling head version

Fork milling head

M-SERIES

5 axes milling, turning, grinding. With a large spindle selection for every application,up to 40 kW.

To the milling head version

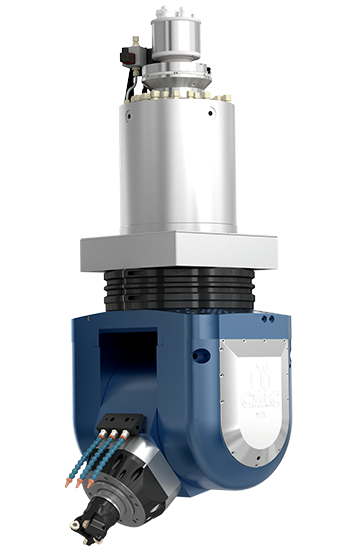

Fork milling head

M-SERIES HD

At home in heavy machining, but due to its flexibility the ideal all-rounder for finish machining.

To the milling head version

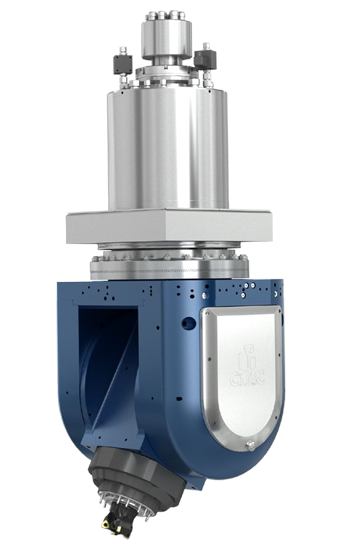

Fork milling head

G-SERIES

Best power density on the market. Perfect for aerospace, engineering and commercial vehicle production.

To the milling head version

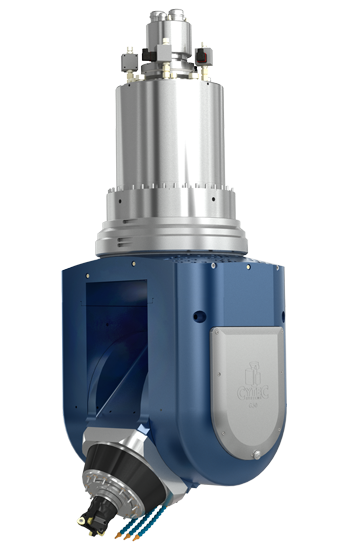

Fork milling head

G-SERIES HD

Sheer power and highly dynamic at the same time - without compromises from rough to fine 5-axis machining.

To the milling head version

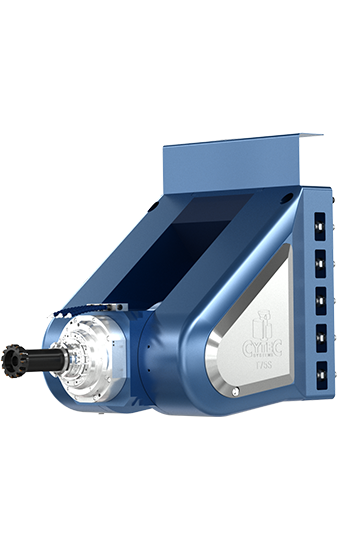

Fork milling head

T-SERIES

A true powerhouse that meets 100% of the requirements needed to machine complex workpieces made of high-strength materials, also for the aerospace industry.

To the milling head version

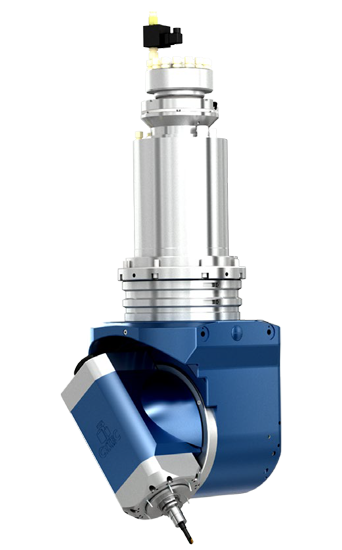

Orthogonal milling head

P-SERIES

Economical-flexible-light. High torque for simultaneous milling with hydraulic locking of the axes.

To the milling head version

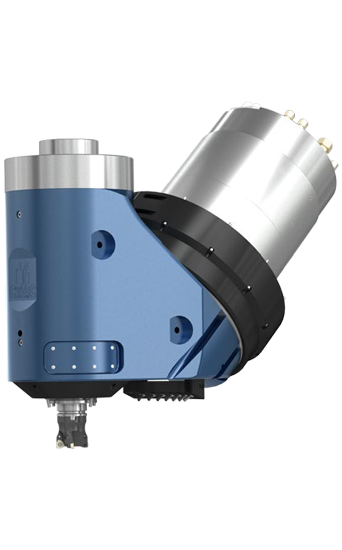

Universal milling head (single axis)

M-SERIES 45°

Ideal for horizontal machine tools in combination with rotary table system. Slim design and with a large spindle selection for every application.

To the milling head version

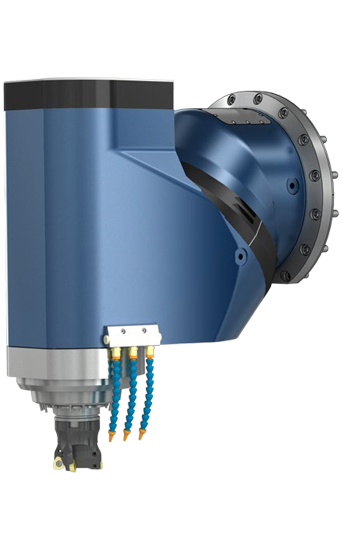

Universal milling head (single axis)

M-SERIES 45° HD

Ideal for horizontal machine tools in combination with rotary table system. Best power density on the market.

To the milling head version

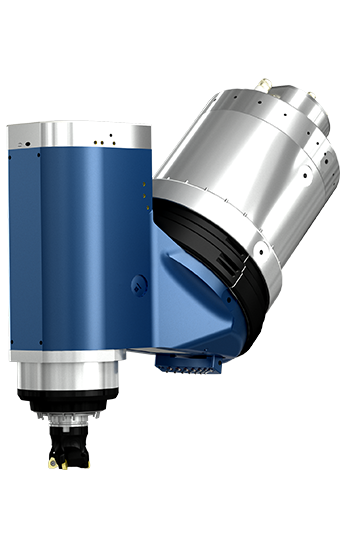

Universal milling head (single axis)

G-SERIES 45°

Ideal for horizontal machine tools in combination with rotary table system. Best power density on the market.

To the milling head version

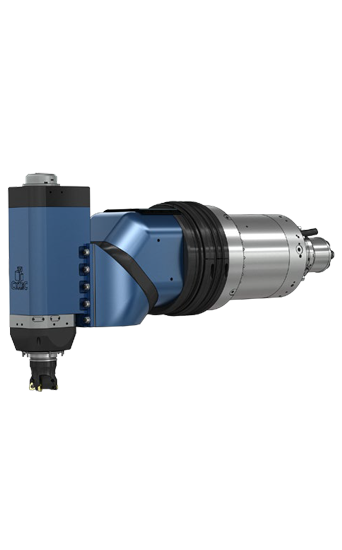

Universal milling head (double axis)

M-SERIES 2 X 45°

Suitable for horizontal and vertical machine tools.

To the milling head version

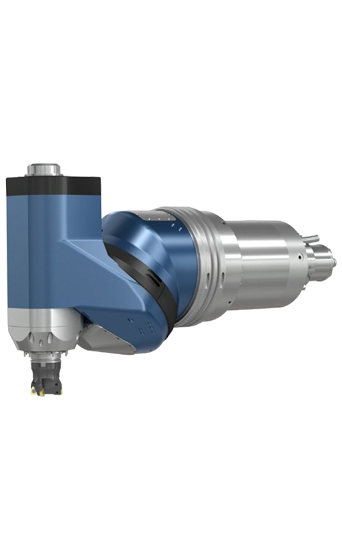

Universal milling head (double axis)

M-SERIES 2 X 45° HD

The universal milling head with maximum flexibility, ideal in the Tool Center. Simultaneous or in high-precision positioning mode with 0.0005°.

To the milling head version

CYTEC TECHNOLOGY INSIDE – OUR ADDED VALUE AND YOUR BENEFIT

  • MILLING HEADS WITH CUSTOMIZED CONFIGURATION – tailored to your application and your requirements
  • MAXIMUM PRECISION – achieved through solid radial/axial roller bearings, state-of-the-art measuring systems and excellent rigidity
  • INTEGRATED SAFETY PACKAGE – digital sensor technology for 360° monitoring of all operational steps
  • ULTRA-HIGH-TORQUE DIRECT DRIVES OF OUR LASTEST GENERATION - designed to achieve maximum performance and & high dynamics as well as effective cooling solutions in A-/C axis and maximum-performance clamping
  • EXCELLENT RIGIDITY – For maximum machining quality and failure-free operations
  • CARTRIDGE AXIS HOUSING – for maximum reliable protection from harmful environmental effects and dirt
  • INTELLIGENT SUPPLY LINE AND DATE COMMUNICATION SOLUTION – For a simple integration into your existing machine-tool periphery

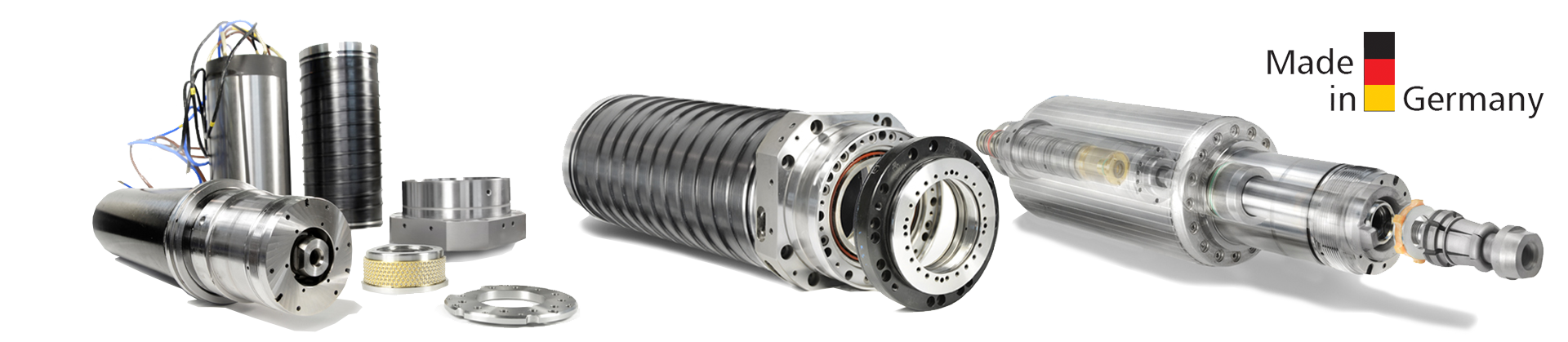

  • COSTUMISED SPINDLES– the perfect CYTEC spindle to ensure your perfect machine processing. CYTEC spindles achieve up to 70 kW and rotational speed up to 24.000 min­­-1

CYTEC OPTIONS FOR A PERFECT APPLICATION

Automatic spindle exchange

Automatic head exchange

Horizontal head

Vertical head

Suction device

Mill/turning function

High speed or high torque spindles
