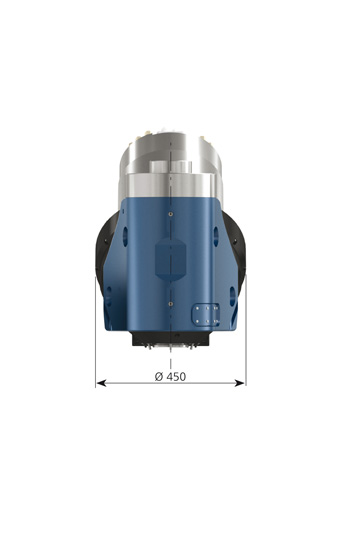

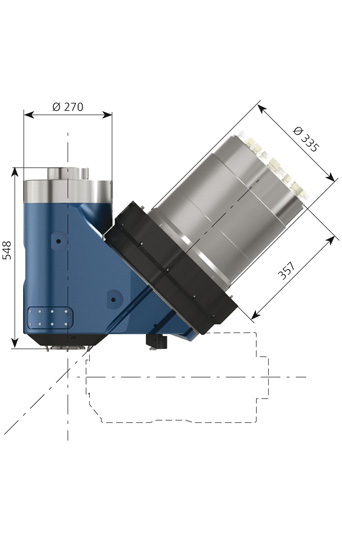

Universal milling head (single axis)

M-SERIES 45°

Swivel head with rotation option

Ideal for horizontal machine tools in combination with rotary table system. Slim design and with a large spindle selection for every application.

*Example with CS-21-180-A
A-axis
Nom. torque [Nm] 900
Max. torque [Nm] 1,680
Nom. current [A] 30
Clamping torque 60bar [Nm] 4,000
Swivel angle [°] ±180
Measuring system absolute
Positioning accuracy["] ±2
Total weight ca. [kg] 410

Back


MATCHING SPINDLES

Motor spindle series

CS-21-180-A

Power S1 [kW] 21
Power S6 [kW] 27
Torque S1 [Nm] 100
Torque S6 [Nm] 130
Tool interface HSK-A63
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 18000
Length [mm] 546
Available options

Motor spindle series

CS-27-180-S

Power S1 [kW] 27
Power S6 [kW] 32
Torque S1 [Nm] 130
Torque S6 [Nm] 170
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 12000
Length [mm] 546
Available options

Motor spindle series

CS-34-180-S

Power S1 [kW] 34
Power S6 [kW] 43
Torque S1 [Nm] 170
Torque S6 [Nm] 220
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 12000
Length [mm] 622
Available options

Motor spindle series

CS-40-180-S

Power S1 [kW] 40
Power S6 [kW] 51
Torque S1 [Nm] 67
Torque S6 [Nm] 85
Tool interface HSK-A63
Bearing lubrication Grease
Nom. speed [min -1] 5700
Max. speed [min -1] 24000
Length [mm] 546
Available options

Motor spindle series

CS-42-180-S

Power S1 [kW] 42
Power S6 [kW] 53
Torque S1 [Nm] 201
Torque S6 [Nm] 253
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 12000
Length [mm] 622
Available options
