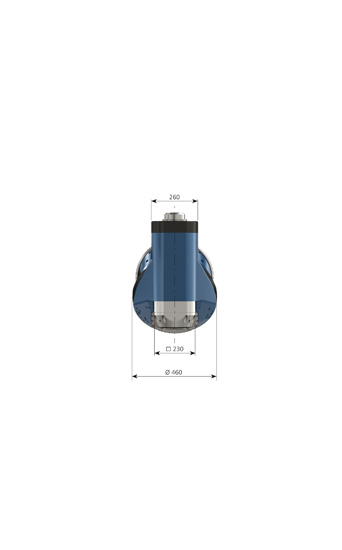

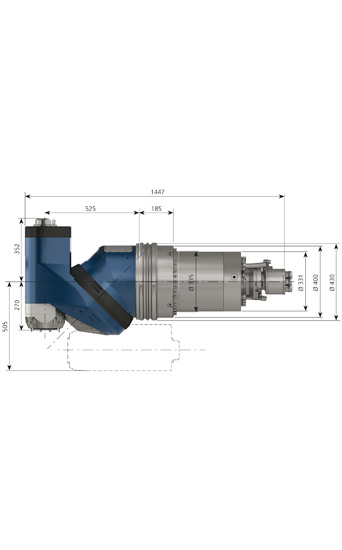

Universal milling head (double axis)

M-SERIES 2 X 45° HD

Highest flexibility

The universal milling head with maximum flexibility, ideal in the Tool Center. Simultaneous or in high-precision positioning mode with 0.0005°.

*Example with CS-40-200-S
A-axis C-axis
Nom. torque [Nm] 7801,020
Max. torque [Nm] 1,4701,960
Nom. current [A] 3030
Clamping torque 60bar [Nm] 2,5004,000
Swivel angle [°] ±190±360 (cont.)
Measuring system absoluteabsolute
Positioning accuracy["] ±2±2
Total weight ca. [kg] 960

Back


MATCHING SPINDLES

Motor spindle series

CS-40-200-S

Power S1 [kW] 40
Power S6 [kW] 50
Torque S1 [Nm] 160
Torque S6 [Nm] 200
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2400
Max. speed [min -1] 15000
Length [mm] 671
Available options

Motor spindle series

CS-50-200-S

Power S1 [kW] 50
Power S6 [kW] 64
Torque S1 [Nm] 240
Torque S6 [Nm] 300
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 8000
Length [mm] 671
Available options

Motor spindle series

CS-70-200-S

Power S1 [kW] 70
Power S6 [kW] 90
Torque S1 [Nm] 85
Torque S6 [Nm] 105
Tool interface HSK-A63
Bearing lubrication Oil/Air
Nom. speed [min -1] 8000
Max. speed [min -1] 24000
Length [mm] 671
Available options
