Universal milling head (single axis)

G-SERIES 45°

Best power density on the market

Ideal for horizontal machine tools in combination with rotary table system.

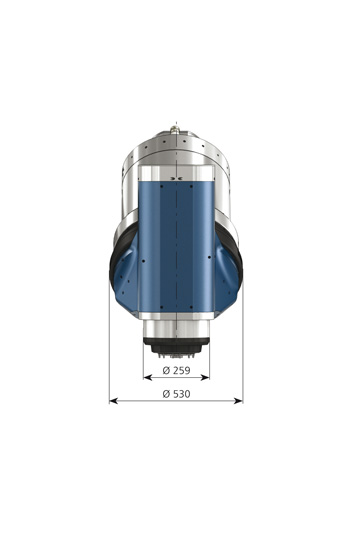

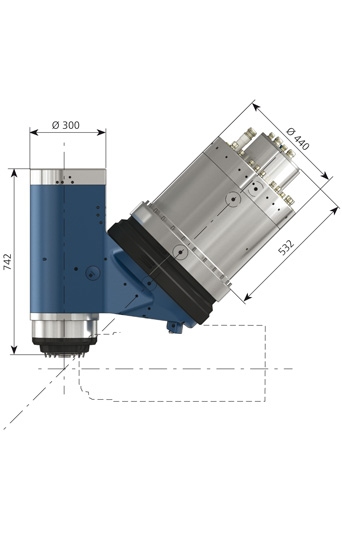

*Example with CS-42-238-S
A-axis
Nom. torque [Nm] 1,820
Max. torque [Nm] 3,550
Nom. current [A] 28.6
Clamping torque 60bar [Nm] 5,500
Swivel angle [°] ±180
Measuring system absolute
Positioning accuracy["] ±2
Total weight ca. [kg] 640

Back


MATCHING SPINDLES

Motor spindle series

CS-40-238-A

Power S1 [kW] 40
Power S6 [kW] 48
Torque S1 [Nm] 280
Torque S6 [Nm] 340
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 1350
Max. speed [min -1] 15000
Length [mm] 697
Available options

Motor spindle series

CS-42-238-S

Power S1 [kW] 42
Power S6 [kW] 55
Torque S1 [Nm] 400
Torque S6 [Nm] 525
Tool interface HSK-A100 / SK50 / C8
Bearing lubrication Grease
Nom. speed [min -1] 1000
Max. speed [min -1] 8000
Length [mm] 697
Available options

Motor spindle series

CS-50-238-A

Power S1 [kW] 50
Power S6 [kW] 63
Torque S1 [Nm] 248
Torque S6 [Nm] 315
Tool interface HSK-A100
Bearing lubrication Grease
Nom. speed [min -1] 2000
Max. speed [min -1] 15000
Length [mm] 697
Available options

Motor spindle series

CS-75-260-A

Power S1 [kW] 75
Power S6 [kW] 94
Torque S1 [Nm] 484
Torque S6 [Nm] 620
Tool interface HSK-A100 / SK50
Bearing lubrication Grease
Nom. speed [min -1] 1600
Max. speed [min -1] 10000
Length [mm] 780
Available options

Motor spindle series

CS-115-260-S

Power S1 [kW] 115
Power S6 [kW] 138
Torque S1 [Nm] 700
Torque S6 [Nm] 824
Tool interface HSK-A100 / SK50
Bearing lubrication Grease
Nom. speed [min -1] 1600
Max. speed [min -1] 5000
Length [mm] 780
Available options
